# Bellman Ford’s Single Source Shortest Path algorithm from Dynamic Programming Perspective

Input: Given a weighted graph G with vertex set V and Edges E, a **source vertex u** ∈ V

V represents the set of all vertices, E is a collection of pairs (i,j) representing an edge from i to j

Problem: Find the weight of the shortest path from source vertex u to all the other vertices belonging to set V.

Shortest Pathfrom source vertex u to any other vertexcan have at most |V|-1 number of edges.

Given problem can be defined as:

if

sp(i,e)representsweight of theshortest path from source vertex u to vertexi, which can haveatmost e number of edges,then for all the vertices i ∈ V,find sp(i,|V|-1)

For example if the graph is:

Here if we treat A as the source vertex and try to find out the weight of the shortest path from A to all other vertices. Then **we have to basically find out sp(B,3) sp(C,3) and sp(D,3).**

## Optimal Substructure Property:

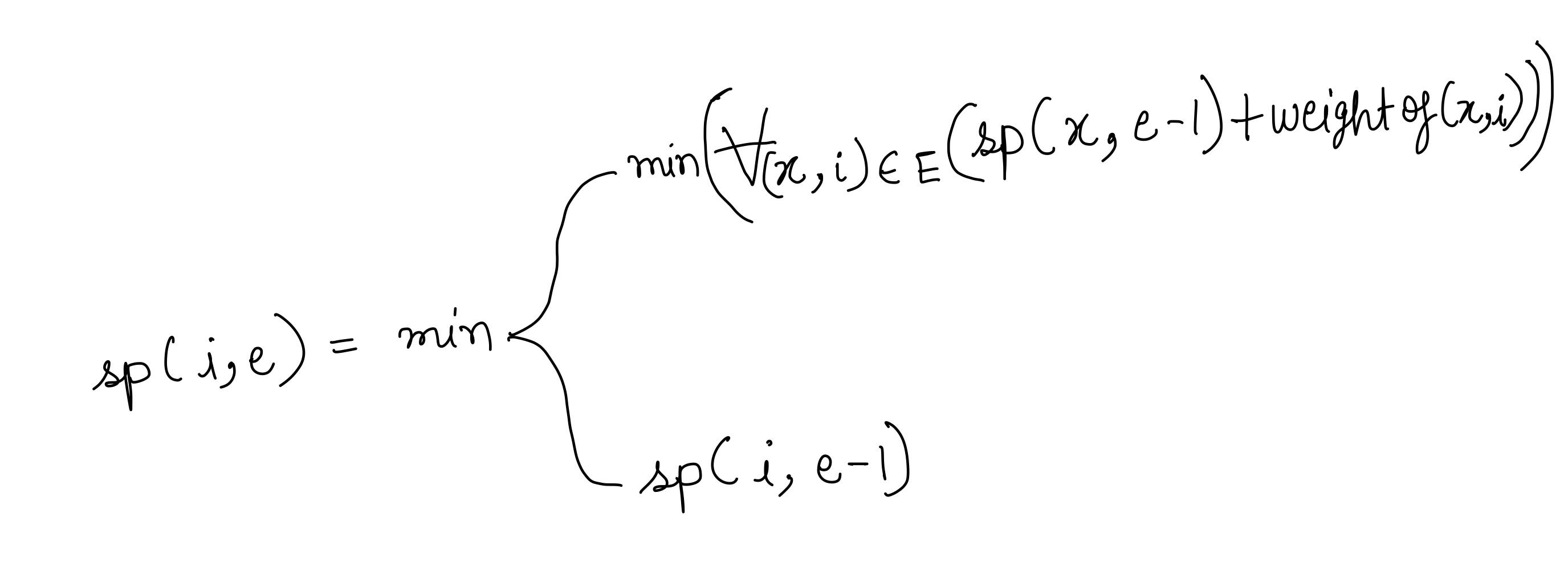

sp(i,e) can be expressed in terms of subproblems like this:

**∀(x,i)∈E** means for all the incoming edges to the vertex i , find out **sp(x,e-1) + weight(x,i)** which means weight of the shortest path from source vertex u to vertex x using e-1 number of edges + weight of the edge(x,i)

sp(i,e) = min ( for all incoming edges to the vertex i (x,i) { sp(x,e-1)+ weight of edge (x,i) }

ORsp(i,e-1) )

So, if we were to find out the sp(C,3) in the above given graph.

Vertex C is having incoming edges from A and B. Therefore,

sp(C,3) = min ( (sp(A,2)+weight of (A,C)) **OR** (sp(B,2) + weight of edge(B,C)) **OR** sp(C,2) )

## Solution time

In reference to the graph taken above, to get the answer i.e sp(B,3), sp(C,3), sp(D,3). We **start in bottom up manner** i.e we first find out sp(B,1) sp(C,1) sp(D,1) then we try to find out sp(B,2) sp(C,2) sp(D,2) and then sp(B,3) sp(C,3) sp(D,3)

Initially, sp(C,0) = weight of shortest path from source vertex A to C using 0 edges which is infinity as there is no path from A to C using 0 edges. Similarly for others.

sp(C,1) = min( (sp(B,0)+weight(B,C)) OR (sp(A,0) + weight(A,C)) OR sp(C,0))

sp(C,1) = min( (INF + 3) OR (0 + 6) OR INF) = 6

Similarly, you can find sp(B,1) sp(D,1)

Now sp(C,2)= min( (sp(B,1)+weight(B,C)) OR (sp(A,1) + weight(A,C)) OR sp(C,1))

sp(c,2) = min( (2 + 3) OR (0+6) OR 6) = 5

Similarly, you can find out sp(B,2) sp(D,2)

Bellman Ford algorithm works fine for Graphs with negative edges as well.

## Time Complexity Analysis

Please note that while calculating sp(A,e), sp(B,e) sp(C,e) sp(D,e), it will take O(|E|) time. Because incoming edges of A + incoming edges of B + incoming edges of C + incoming edges of D = all the edges

So, finding out sp(A,e), sp(B,e), sp(C,e), sp(D,e) for e=0 to (|V|-1) times will take O(|V|*|E|).

Therefore time complexity of Bellman Ford’s Algorithm is O(|V|*|E|).

## Space Complexity Analysis:

Although the solution discussed above is utilizing O(|V|²) space. But it can be optimized to take only O(2*|V|) space because while calculating sp(i,e) we are taking the help of only (e-1) row.

Therefore space complexity of bellman ford algorithm is O(|V|).
